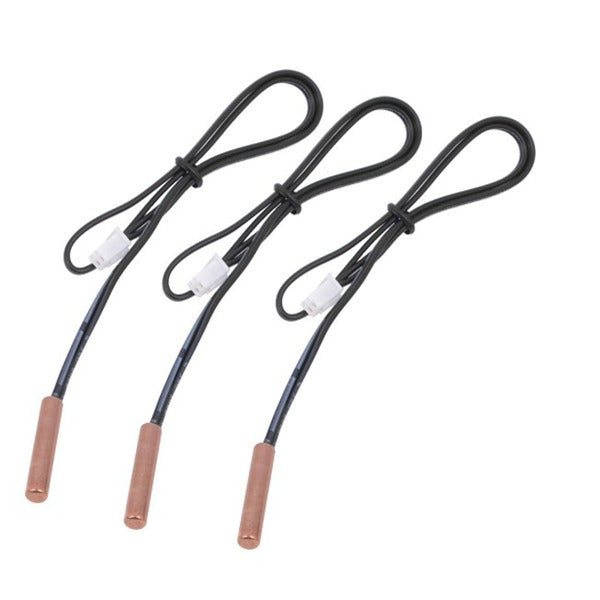

Product Description：
NTC Thermistors are non-linear resistors,which alter their resistance characteristics with temperature. The resistance of NTC will decrease as the temperature increases. As the air passes the sensor, it reads the temperature and compares that reading to the setting on your thermostat. If the air is warmer then your desired setting, the sensor will activate the compressor or in other words, begin to cool the inside of the building.
Drawing：
|
No. |
Part |
Specification |
Mark |
|
1 |
Chip |
R25℃:10KΩ±1% B25/85℃:3435K |
Can Customize |
|
2 |
Probe |
Copper |
Stainless Steel, Customize |
|
3 |
Wire |
1m |
Can Customize Any Length/Color/Material |
|
4 |
Connector |
|
Can be Customize |
Parameters:
R@25°c : 1k-100kΩ.
R@25°c : 1k-100kΩ.
B@25°c/50°c: 3270, 3380, 3470, 3550, 3700, 3950,3977, 3990, 4100,4200K etc
Operating temperate : -20~120°C, -30~250°C,-40~350°C, customized
Operating temperate : -20~120°C, -30~250°C,-40~350°C, customized
Probe material : nickel-clad copper, brass, stainless steel, aluminum, customized
Probe size : 5*25mm , 6*25mm, 7*25mm,8*25mm,9*25mm option
Cale material : Teflon wire, PVC wire, Silicone wire, customized
Cable length : Customized
Connector : Customized
Cable length : Customized
Connector : Customized

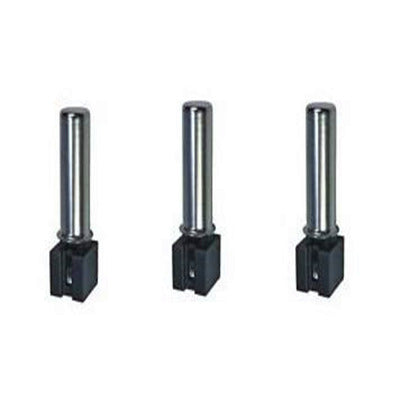

More products show :
Application:

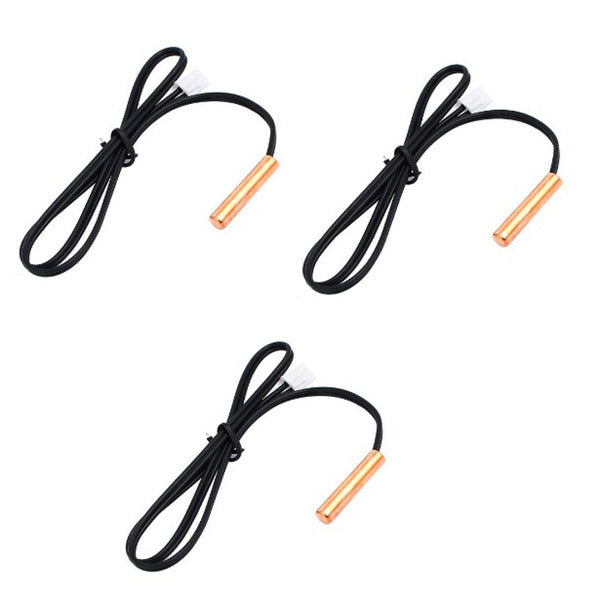

Widely used in air conditioners:
Certifications:
Main Export Market Reports :
Our Services
Makesafer temperature sensor's standard precision thermistors are low cost, highly accurate, stable devices designed specifically for temperature sensing and control applications.
-We will contact the customers every three months to check if the products running well.
-If receiving the notice from the buyer, we will respond to the customer within
24 hours .
-If you are caught in some problems when using our products, welcome to
contact us at any time.
Makesafer temperature sensor's standard precision thermistors are low cost, highly accurate, stable devices designed specifically for temperature sensing and control applications.
-We will contact the customers every three months to check if the products running well.
-If receiving the notice from the buyer, we will respond to the customer within
24 hours .
-If you are caught in some problems when using our products, welcome to
contact us at any time.
Payment Terms:
-T/T
-Western Union
-PayPal
Shipping: 3 -5 days
How to place the order with our products?
Offer Requirement for Inquiry →Producing Sample →Sample Confrimation →
Quotation →PI → Confirm PI → Arrange Payment→ Manufacture → Shipping
Quotation →PI → Confirm PI → Arrange Payment→ Manufacture → Shipping
Together, we can make it better. Makesafer, let's make electronic safer.
Makesafer technology is a professional protective components supplier. We could better offer you full range electronics components with competitive price and professional service.
Makesafer researches, manufactures and markets a wide range of protective components, including PPTC resettable fuse, PTC thermistor/sensors, NTC thermistors, NTC temperature sensors, Infrared Pir motion sensors, heating film elements and so on.
We place great emphasis on the technologies and products that can bring suitable solutions to meet customer's special requirements. Our goal is not only to continuously expand business, but also to provide customers with more responsive service and support activities.
As a professional protective components supplier, we always combine precision quality with efficient processing and excellent service. Our manufacturing bases are certified under ISO9001. All our products are RoHS compliant, and certificated under UL, TUV approvals.
Makesafer, the best professional protective device supplier you can trust in China.
Let’s Make Electronics Safer.
