Product Description:
High Precision Radial Type NTC Thermistor 2.7KOhm 3950 For Car Automotive Electronics

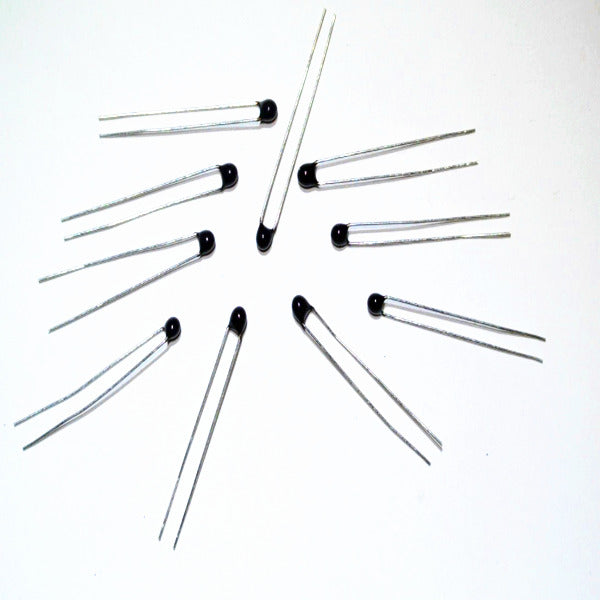

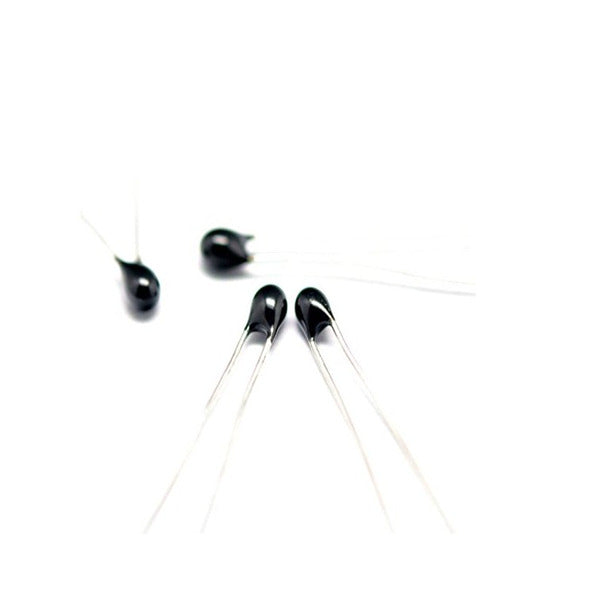

Makesafer radial type NTC thermistor, that is composed of epoxy-coated sensor head and two lead wires of Sn coated. This series is designed for easy soldering to wire harness or circuit board(PCB).
MF52 series in the form of radial resin coated form.
Wide resistance range: 0.1~500KΩ
High precision of resistance and B value.
High measurement precision.
Small dimension, fast response.
Good consistency.
Can Operate in long time stability.
Operating temperature range: -40 ~ +125℃.
Dimension (mm):
|
A |
B |
C |
D |
L |
|
Max 2.5 |
Max 4.0 |
1.7±.5 |
0.3±0.05 |
25±1 |
|
Max 3 |
Max 4.5 |
2.2±.5 |
0.45±0.05 |
25±1 |
Materials:
|
NO |
Material Name |
Item/PN |
|
E. |
Element |
R25=2.7KΩ±1% B25/50=3950±1% |
|
B |
Coating |
Epoxy resin |
|
D. |
Lead Wire |
CP Wire |
Performances:
|
NO |
Item |
Sign |
Test Conditions |
Min. |
Normal value |
Max. |
Unit |
|
1. |
Resistance at 25℃ |
R25 |
Ta=25±0.05℃ PT≦0.1mw |
2.673 |
2.7 |
2.727 |
kΩ |
|
2. |
B Value |
B25/50 |
3910.5 |
3950 |
3989.5 |
k |
|
|
3. |
Dissipation factor |
σ |
In still air |
≥2 |
mw/℃ |
||
|
4. |
Time constant |
τ |
In still air |
≤7 |
sec |
||
|
5. |
Operating temp.range |
/ |
/ |
-55 |
/ |
+125 |
℃ |
|
6 |
Insulation resistance |
/ |
100V DC 1min |
≥100 |
MΩ |
||
|
7. |
Maximum rated power |
Pmax |
/ |
≤50 |
mW |
||
Applications:
